Maximize Your Brand's Impact with Outdoor LED Screens

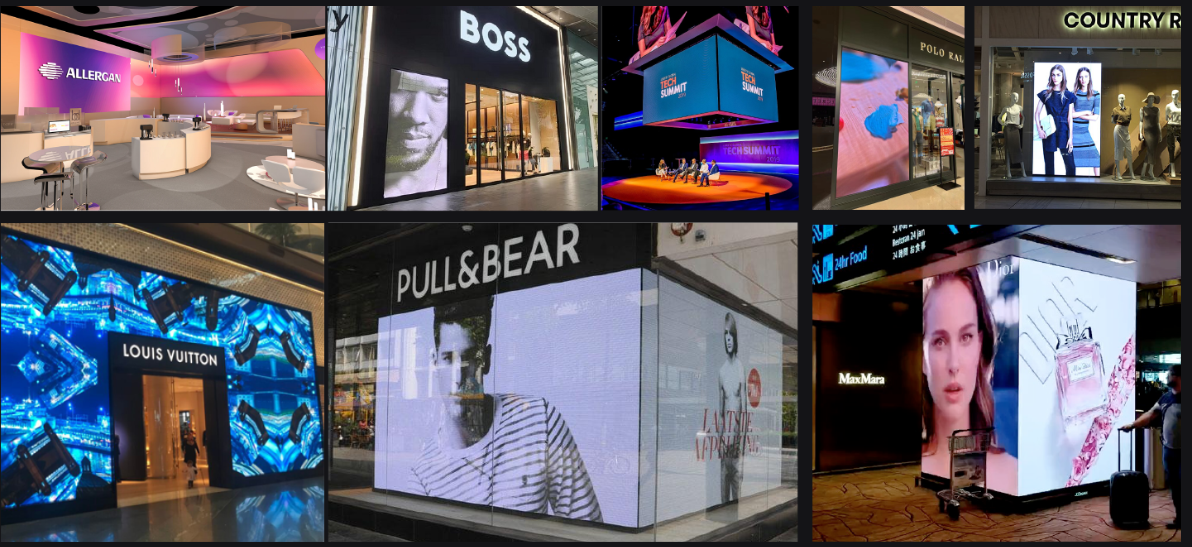

Therefore, a smaller spacing equates to a smaller viewing distance. It utilizes light-emitting diode (LED) technology to display videos, images, text, and other multimedia content with vivid colors and high resolution. They play important roles in advertising, public information dissemination, entertainment, and communications.

High-quality outdoor LED displays need to have excellent waterproof ratings to withstand various harsh weather conditions such as rain, snow, and humidity.

Ensure the chosen display meets or exceeds local waterproof standards. Sufficient durability ensures the equipment can operate stably outdoors for extended periods.

Generally, most outdoor LED screens have a waterproof rating of at least IP65. If your area experiences frequent rainfall, IP67 or IP68 outdoor LED panels would be preferable.

The Fineness of the Screen

Outdoor LED SCREEN pictures many dots on the screen we can see is made up .The Outdoor LED Screen pitch and higher resolution Outdoor pitch LED display can display more image content for display Advertising ,Public Awareness Schemes . As a result, Outdoor LED SCREEN picture quality of the Video & Images is higher. At the same time, there is no obvious graininess as per the viewing distance according the LED SCREEN Resolution.

The main pixel pitch of the product includes P6, P5,P4, P3 ,P2.5, etc.

LED Specification

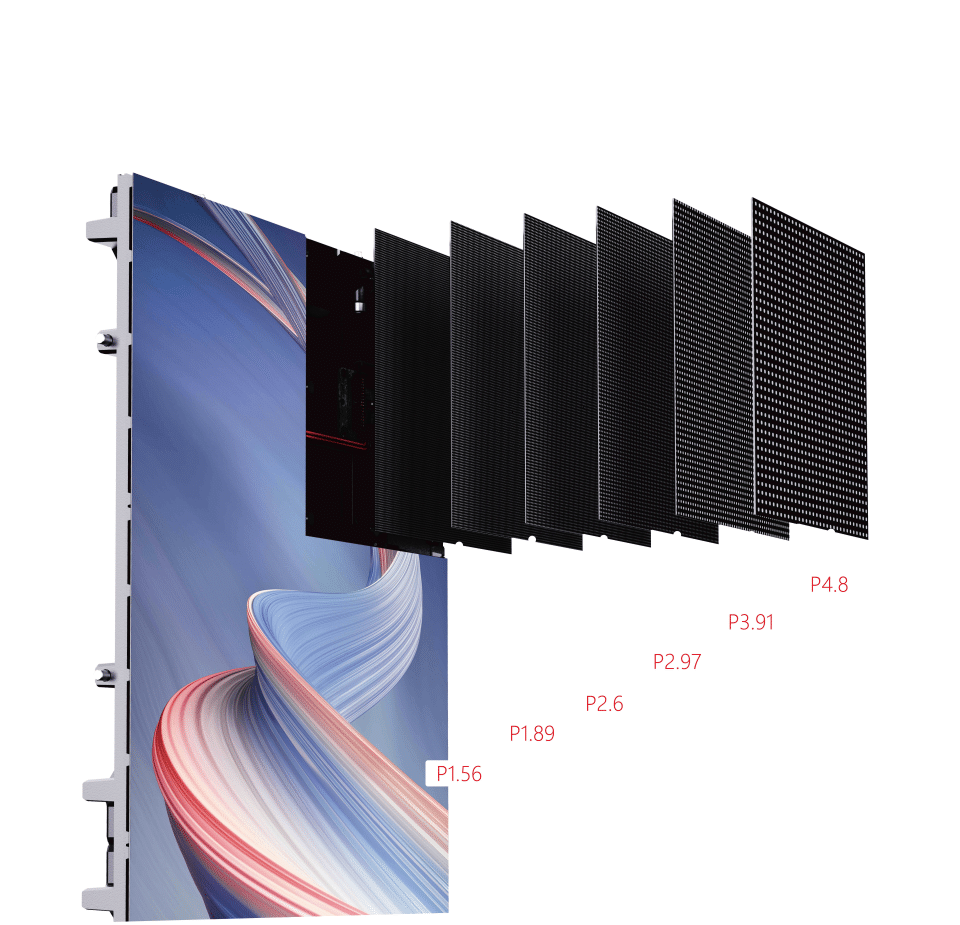

IP65 Protection

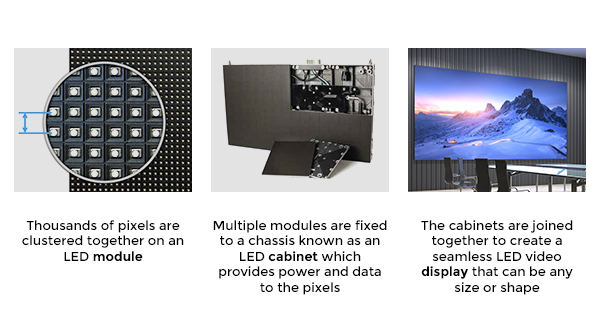

LED Pixel

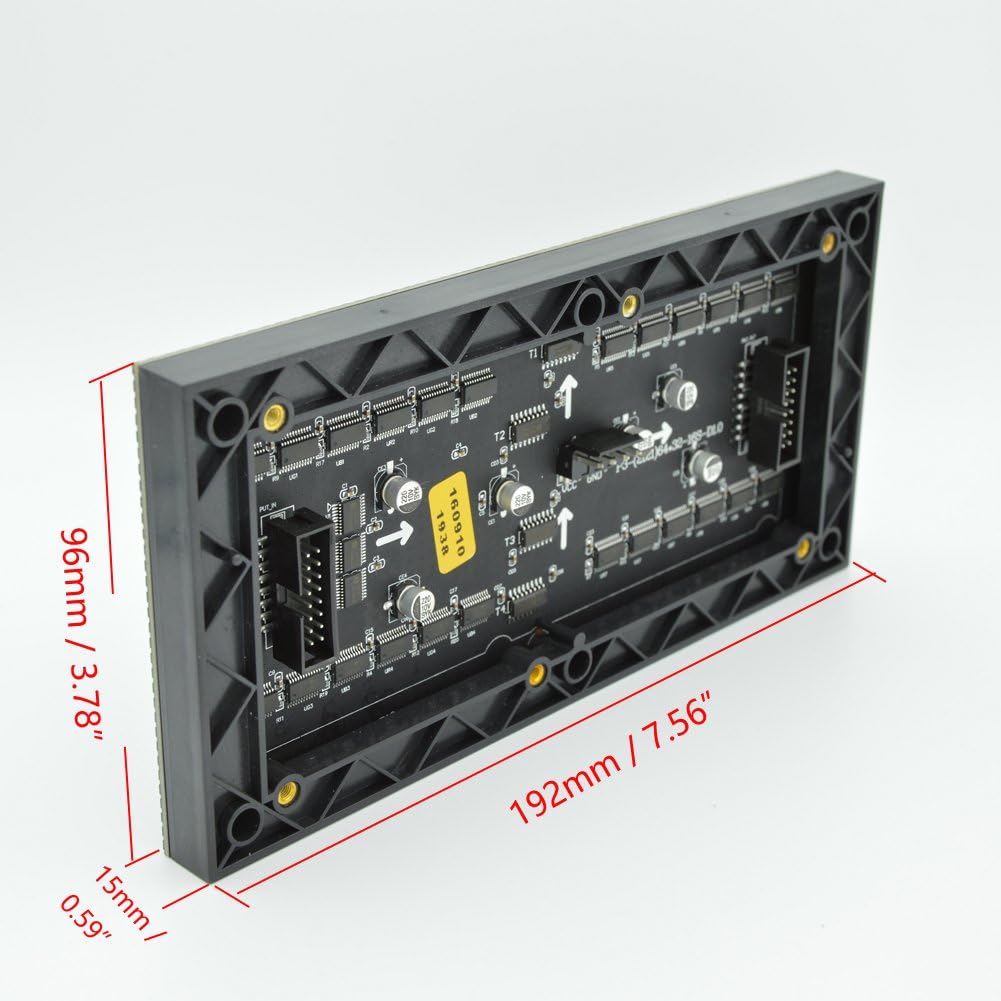

Panel Dimension

Module Specification

Viewing Distance

Secondly, the dot spacing will affect the optimal viewing distance of the led screen. The narrow pixel pitch LED display has smoother transitions and richer details. So viewers can see clear images at closer distances.

Therefore, a smaller spacing equates to a smaller viewing distance.

ITEM		Outdoor Panels
ITEM		Outdoor P4	Outdoor P5	Outdoor P6	Outdoor P8	Outdoor P10
Module	Panel Dimension	320mm(W) x 160mm(H)	320mm(W) x 160mm(H)	320mm(W) x 160mm(H)	320mm(W) x 160mm(H)	320mm(W) x 160mm(H)
	Pixel Pitch	4mm	5mm	6mm	8mm	10mm
	Pixel Density	62500 dot/m²	40000 dot/m²	22477 dot/m²	15625 dot/m²	10000 dot/m²
	Pixel Configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
	LED Specification	SMD1921	SMD2727	SMD3535	SMD3535	SMD3535
	Pixel Resolution	80x40 dots	64x32 dots	48x48 dots	40x20 dots	32x16 dots
	Average Power	52W	45W	43W	43W	46W / 25W
	Panel Weight	0.5 KG	0.45 KG	0.45 KG	0.5 KG	0.45 KG
Cabinet	Cabinet Size	960mm x 960mm x 90mm	960mm x 960mm x 90mm	960mm x 960mm x 90mm	960mm x 960mm x 90mm	960mm x 960mm x 90mm
	Cabinet Resolution	240x240 dots	192x192 dots	144x144 dots	120x120 dots	96x96 dots
	Quality of Panel	18 pcs	18 pcs	18 pcs	18 pcs	18 pcs
	Hub Connection	HUB75-E	HUB75-E	HUB75-E	HUB75-E	HUB75-E
	Best Viewing Angle	170°/120°	170°/120°	140°/120°	140°/120°	140°/120°
	Best Viewing Distance	4-40M	5-40M	6-40M	6-40M	10-50M
	Operational Temprature	~10°C ~45°C	~10°C ~45°C	~10°C ~45°C	~10°C ~45°C	~10°C ~45°C
	Screen Power Supply	AC110V / 220V - 5V60A	AC110V / 220V - 5V60A	AC110V / 220V - 5V60A	AC110V / 220V - 5V60A	AC110V / 220V - 5V60A
	Max Power	1350 W/m²	1350 W/m²	1350 W/m²	1350 W/m²	1300 W/m², 800 W/m²
	Average Power	675 W/m²	675 W/m²	675 W/m²	675 W/m²	675 W/m², 400 W/m²
Technical Index	Driving IC	ICN 2037/2153	ICN 2037/2153	ICN 2037/2153	ICN 2037/2153	ICN 2037/2153
	Scan Rate	1/5S	1/8S	1/6S	1/5S	1/2S, 1/4S
	Refresh Frequency	1920 - 3840 HZ/S	1920 - 3840 HZ/S	1920 - 3840 HZ/S	1920 - 3840 HZ/S	1920 - 3840 HZ/S
	Display Color	4096 x 4096 x 4096	4096 x 4096 x 4096	4096 x 4096 x 4096	4096 x 4096 x 4096	4096 x 4096 x 4096
	Brightness	4800 mcd/M²	5000-5500 mcd/M²	4000-5000 mcd/M²	4800 mcd/M²	4000-6700 mcd/M²
	Life Span	100000 Hours	100000 Hours	100000 Hours	100000 Hours	100000 Hours
	Control Distance	< 100M	< 100M	< 100M	< 100M	< 100M
	Operating Humbility	10 - 90 %	10 - 90 %	10 - 90 %	10 - 90 %	10 - 90 %
	IP Protective Index	IP65	IP65	IP65	IP65	IP65
